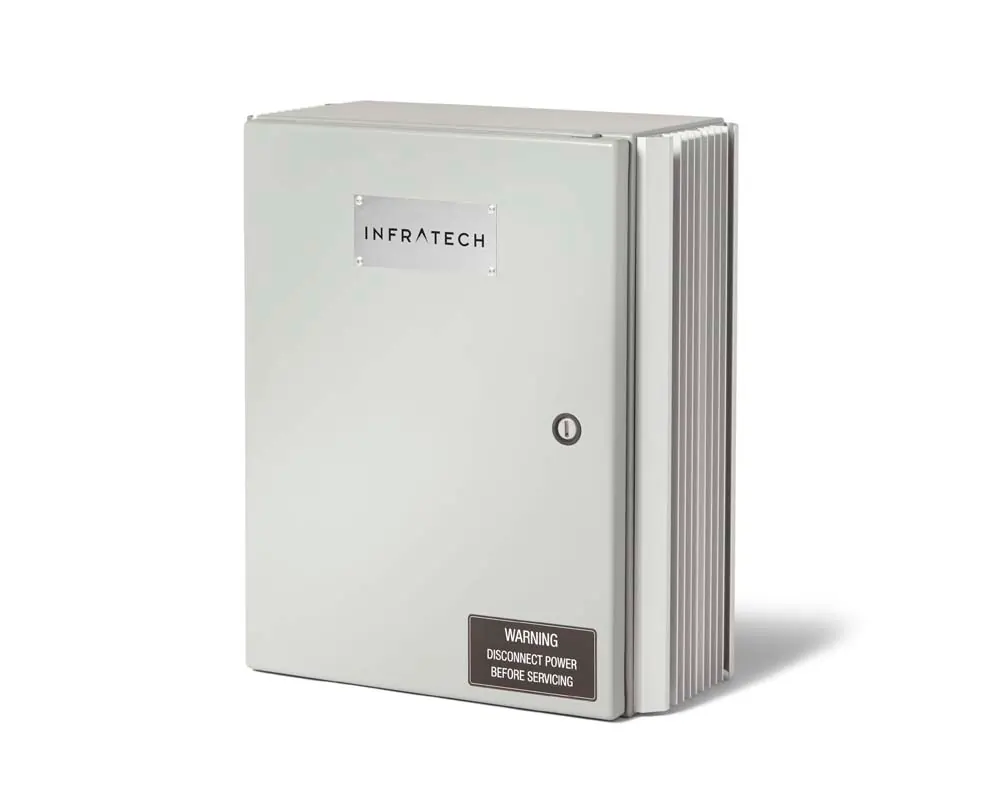

Infratech Universal Control System Panels
Starts at: $2,108.00

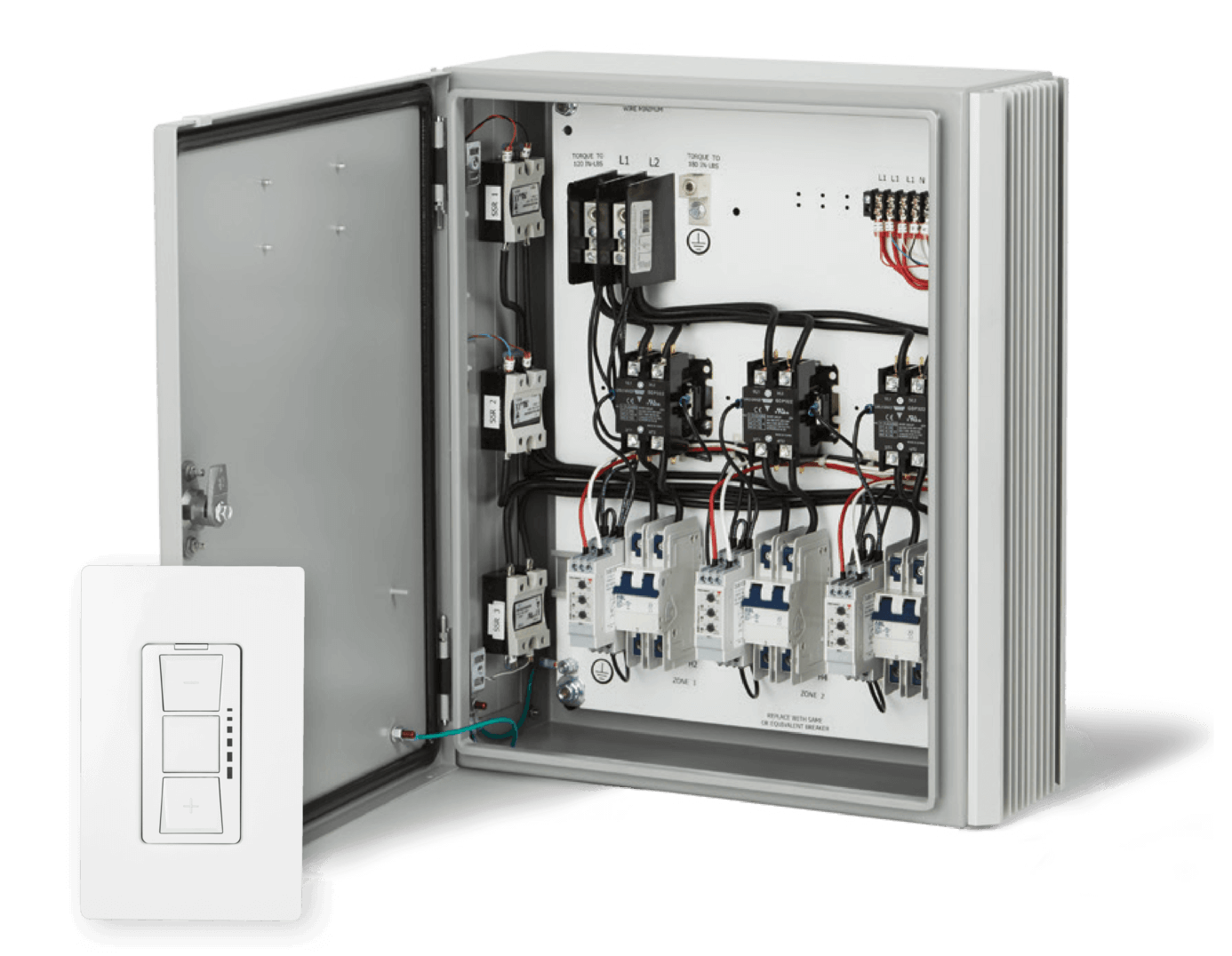

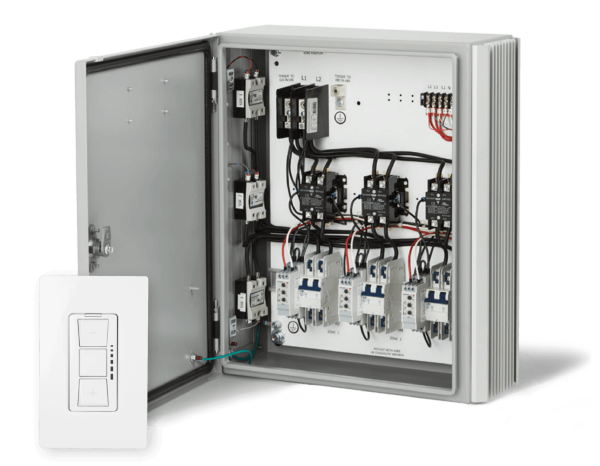

The Infratech Universal Control Panel is the perfect solution for residential and commercial properties of any size. This panel is a complete system that allows you to control the heat comfort level in your space with 0-100% dimming capabilities. This Universal Control Panel also allows you to have individual diming control of each heater or for larger spaces, gives you the option to create “heat zones” and control heaters in pairs. All Panels include one timer and one 120V universal dimmer slide with purchase. For those whom are interested in the versatility of hands-free voice activation, this can be accomplished by sourcing a 120V Wi-Fi/Bluetooth compatible switch (This will need to be sourced and purchased locally through a third-party vendor).
Infratech Universal Control System Panels
MADE IN THE USA
Custom 2-4 WEEK LEAD-TIME. Since panel is custom, this cannot be returned or exchanged.
At time of order, you must provide heater configuration (Heater model per relay), Voltage and phase (Single or Three Phase)
- 9,000 Watt maximum for 240 Volt, 8,000 Watt maximum for 208 Volt
- The exclusive Universal Control Panel allows you to install and control your Infratech heaters using any 120V lighting dimmer of your choice, to coordinate with your home or commercial property’s décor.

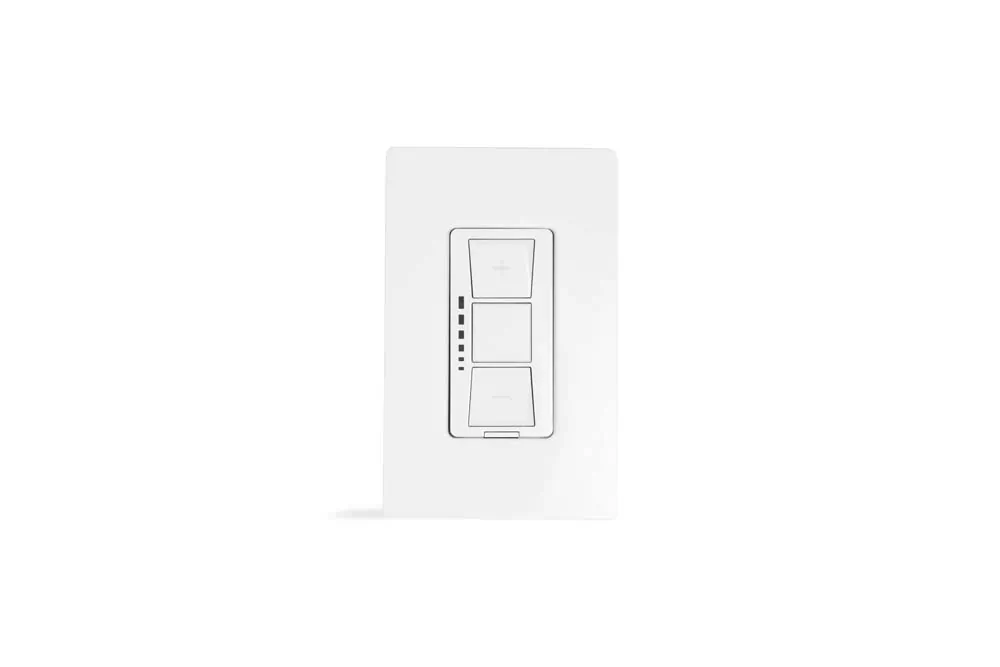

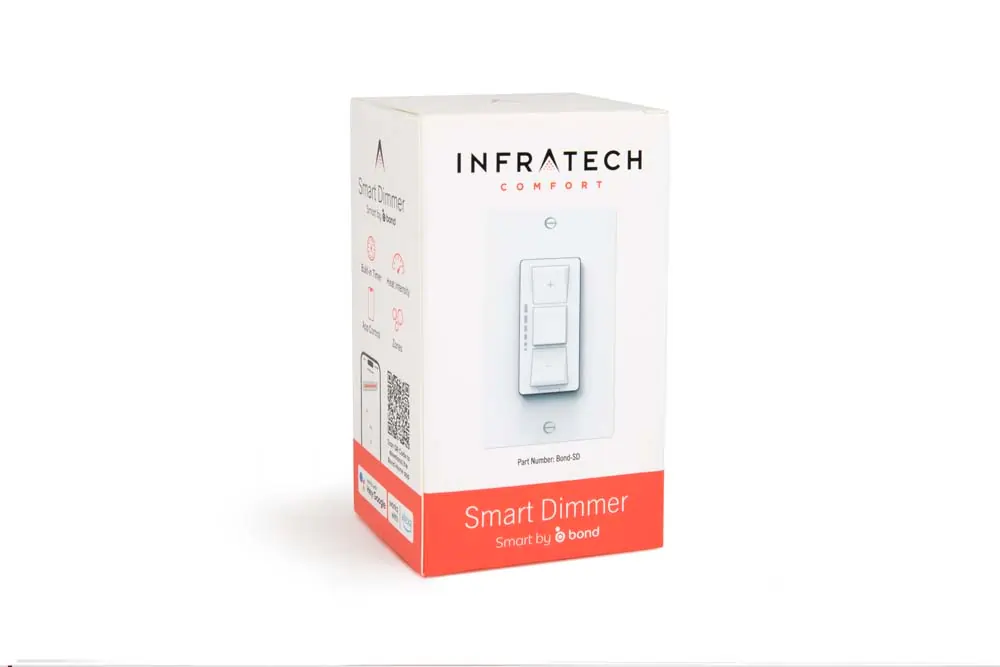

- A 120V Universal Slide Dimmer is provided for convenience (timer optional).
- Create multiple heating zones – an ideal feature for larger or commercial properties.
- Infratech’s exclusive Universal Control Panel allows you to remotely control your heating system from a smartphone or tablet via a Wi-Fi/Bluetooth® compatible device that can be purchased to gain this function.
- Universal Control Panel is 508/UL-listed and made in the USA.
- 3 Year warranty
- Compatible with all 208V – 240V Infratech Heaters
- All panels are custom built to your specification with 1 to 6 zone configurations
- Each panel includes (1) timer
- Each panel will come with a standard 120V dimmer slide for every zone EX: If you have a three-zone panel, you will receive (1) panel, (1) timer and (3) 120V Dimmer Sliders
How to Order:
#1. Select the number of Zones.
- Each Zone can handle up to 9,000 watts at 240V (8,000 watts at 208V)
- Heaters that are paired in a zone must have matching wattages. EX: You can pair (2) 4,000 watt heaters in a single zone because the wattages match and they total up to less than 9,000 watts. EX: You Can Not pair a 4,000 watt and a 6,000 watt in a single zone because the wattages Don’t match, and they total up to more than 9,000 watts.
- Heaters that are paired together in a zone will be controlled together. EX: If you pair (2) 4,000 watt heaters in a single zone, they will be controlled as a pair
- To achieve individual heater control, you will need as many zones as you have heaters. EX: If you have (4) 6,000 watt heaters you will need a Four Zone box.
Additional information
| Select Number of Relays | 1 Relay Universal Panel, 2 Relay Universal Panel, 3 Relay Universal Panel, 4 Relay Universal Panel, 5 Relay Universal Panel, 6 Relay Universal Panel |
|---|
