Bromic Platinum Smart-Heat 316 Marine Grade Electric Patio Heater
Starts at: $3,088.00
Bromic Heaters Our high-quality outdoor heaters and accessories have been developed & engineered specifically for marine applications and coastal environments. Platinum Smart-Heat™ Electric Marine heaters are designed to enrich the comfort experience of owners of coastal residences and superyachts & guests on cruise ships.

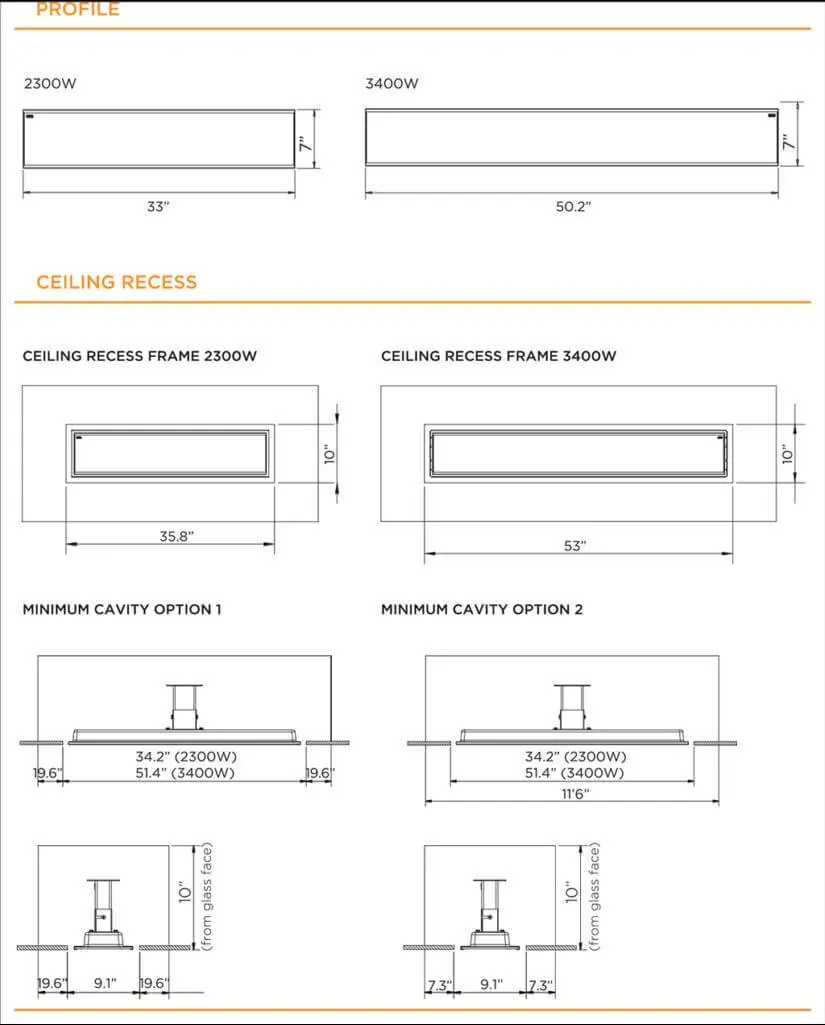

Full Deckhead Integration Capacity Blending seamlessly into the deckhead with our versatile and innovative recess mounting solutions. Premium Quality Construction Made in high-quality, AISI316-grade stainless steel suitable for use in marine environments and tested to the highest standards.
Features:
- Sealed Heating Element Technology
- Sealed compartment with high-performance heating elements to prevent corrosion
- Low Maintenance Ceramic Glass Screen
- Available in white or black finish
- Available in 2300Watt, 3400Watt & 4500Watt
- Translucent ceramic glass screen spreads radiant heat evenly across a large area & minimizes light emission
- On/Off Controls & Dimmer Controls not included, but available
Specifications
| Model Number | 2300W Series | 3400W Series | 4500W Series |
| Fuel Type | Electric | Electric | Electric |
| Color | Black or White | Black or White | Black or White |
| Heat Area | 65ft2 | 108ft2 | 143ft2 |
| Rated Current | 230 – 240V/9.6A | 230 – 240V/14.2A | 220-240V/18.8A |
| Minimum Floor Clearance | Wall 72″ | Ceiling 96″ | Wall 72″ | Ceiling 96″ | Wall 72″ | Ceiling 96″ |
| Mounting Options | 2300W Series | 3400W Series | 4500W Series |
| Ceiling Mount | ✓ | ✓ | ✓ |
| Wall Mount | ✓ | ✓ | ✓ |
| Recessed | Flush Mount | ✓ | ✓ | ✓ |
| Ceiling Pole Mount | ✓ | ✓ | ✓ |
| Freestanding | – | – |
Control Options
On/Off Control & Dimmer Control: 1 CH = Channel Input, each Channel Input can control up to 6000 Watts of power or 10 gas heaters. Below chart explains each model and how many heaters can be used per CH (Channel).
On/Off Controller: Heater(s) can be turned on or off at full power capacity, providing straight forward function and usage of your outdoor heater(s). Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.
Dimmer Controllers: Using the Bromic Heating App, you can instantly and precisely adjust heat output down to 1% increments and other unique scenes and settings for ideal outdoor experiences. Using the enabled Wi-Fi (compatible with 2.4 GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.
On/Off Control & Dimmer Control: Neither come with a remote. Wi-Fi and Bluetooth only.
| Wattage | Item Number | On | Off 1 CH BH3130051 | On | Off CH 2 BH3130052 | On | Off 5 CH BH3130053 | Dimmer 1 CH BH3130061 | Dimmer 2 CH BH3130062 | Dimmer 5 CH BH3130063 |
| 2300 SERIES | BH0320015 240V BLACK Bh0320017 240V WHITE | 2 HEATERS (PER CH) | 4 HEATERS (2 PER CH) | 10 HEATERS (2 PER CH) | 2 HEATERS (PER CH) | 4 HEATERS (2 PER CH) | 10 HEATERS (2 PER CH) |
| 3400 SERIES | BH0320016 240V BLACK BH0320018 240V WHITE | 1 HEATER (PER CH) | 2 HEATERS (1 PER CH) | 5 HEATERS (1 PER CH) | 1 HEATER (PER CH) | 2 HEATERS (1 PER CH) | 5 HEATERS (1 PER CH) |
| 4500 SERIES | BH3622002 240V BLACK BH3622003 240V WHITE | 1 HEATER (PER CH) | 2 HEATERS (1 PER CH) | 5 HEATERS (1 PER CH) | 1 HEATER (PER CH) | 2 HEATERS (1 PER CH) | 5 HEATERS (1 PER CH) |
| 2300 SERIES | BH0320023 208V BLACK BH0320024 208V WHITE | 2 HEATERS (PER CH) | 4 HEATERS (2 PER CH) | 10 HEATERS (2 PER CH) | 2 HEATERS (PER CH) | 4 HEATERS (2 PER CH) | 10 HEATERS (2 PER CH) |
| 3400 SERIES | BH0320025 208V BLACK BH0320026 208V WHITE | 1 HEATER (PER CH) | 2 HEATERS (1 PER CH) | 5 HEATERS (1 PER CH) | 1 HEATER (PER CH) | 2 HEATERS (1 PER CH) | 5 HEATERS (1PER CH) |
| 4500 SERIES | BH3622006 208V BLACK BH3622007 208V WHITE | 1 HEATER (PER CH) | 2 HEATERS (1 PER CH) | 5 HEATERS (1 PER CH) | 1 HEATER (PER CH) | 2 HEATERS (1 PER CH) | 5 HEATERS (1 PER CH) |
| NOTE: | Platinum 4500W-All Models, Individual Element Control | N/A | 1 ELEMENT PER CH | N/A | N/A | N/A | N/A |
Full Deckhead Integration Capacity Blending seamlessly into the deckhead with our versatile and innovative recess mounting solutions. Premium Quality Construction Made in high-quality, AISI316-grade stainless steel suitable for use in marine environments and tested to the highest standards Sealed Heating Element Technology Sealed compartment with high-performance heating elements to prevent corrosion. Low Maintenance Ceramic Glass Screen Available in white or black finish, the translucent ceramic glass screen spreads radiant heat evenly across a large area & minimizes light emission. Smart Heat Controller Dimmer Regulate heat to your preference. Simple and easy to use, with remote control & smart system compatibility.
Additional information
| Wattage | 2300 Watts, 3400 Watts, 4500 Watts |
|---|---|
| Finish | Black, White |
| Fuel Type | Electric |
