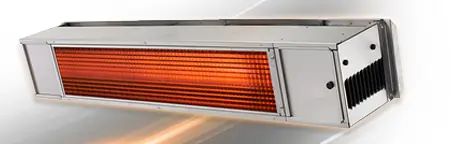

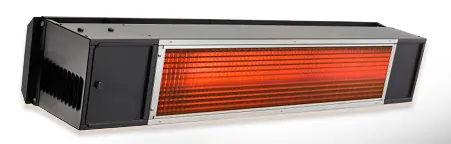

Sunpak S34-TSH Two Stage Hard-Wired Gas Patio Heater

Made in the USA

1 Heater for over 30 years

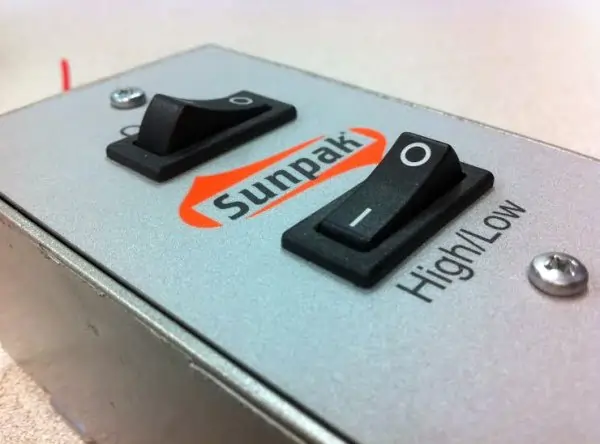

Includes Mounting Kit, 24 Volt Transformer and Duplex Control Switch

For Commercial or Residential use. This heater is adjustable from 25K BTU and 34K BTU by use of a Duplex switch that is hardwired to the wall. Never lose the remote again!

Available in Either Black or Stainless Steel as Well as in Liquid Propane or Natural Gas

• Fully Automatic On/Off/Hi/Low Control System
• Direct Spart Ignition with Auto Re-light and Flame Sensor System
• Two Stage Heater 34,000 BTU to 25,000 BTU
• 304 Series Stainless Steel Construction
• Wall or Ceiling Mount
• Mounting Height: 9′ 1/2″ x 12′
• High Setting 34,000 BTU Approximate Heat Coverage 12’x12′
• Low Setting 25,000 BTU Approximate Heat Coverage 10’x10′
• Recommended for Commerical or Residential Installation

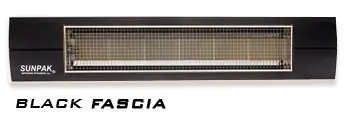

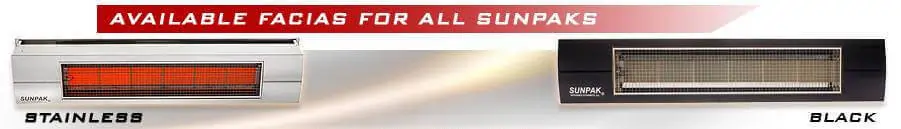

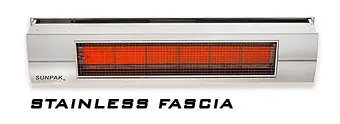

• Optional Black or Stainless-Steel Front Fascia Kit Available
• TSH Model in Both Black and Stainless Steel Now Have a Standard Stainless Steel Oval Front Grill

The SUNPAK patio heater provides radiant warmth for you, in a wide variety of applications.

Two basic SUNPAK models are available. The model S25, with an input rating of 25,000 BTUH, is suitable for patios with a medium ceiling height. The model S34, with an input rating of 34,000 BTUH, will cover a slightly larger area, but requires a higher ceiling. In a moderate climate, SUNPAK can be expected to raise the outdoor comfort level up 10 degrees. The S25 heater typically covers a 10 foot x 10 foot area. The S34 heater covers approximately a 12 foot x 12 foot area. Coverage will vary with ambient temperature, wind chill, mounting height and tilt angle of the heaters.

Appliance Design

SUNPAK’s aluminized or stainless steel enclosure, together with the aluminum face grill, provides resistance to wind and rain. SUNPAK’s slim body design (8 x 8 x 48 inches) and 0 to 30 degree angle mounting option on most models, gives SUNPAK the versatility to fit easily into a wide variety of patio situations. Mounting kit included

The SUNPAK patio heater is design certified by the CSA International as an unvented infrared heater for outdoor or indoor installation. All units are equipped with spark ignition and 100% shutoff for safety, economy, and convenience.

SUNPAK® Heater Placement Chart
(moderate to warm climates)
