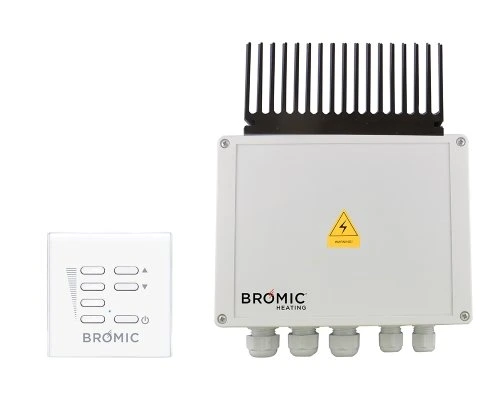

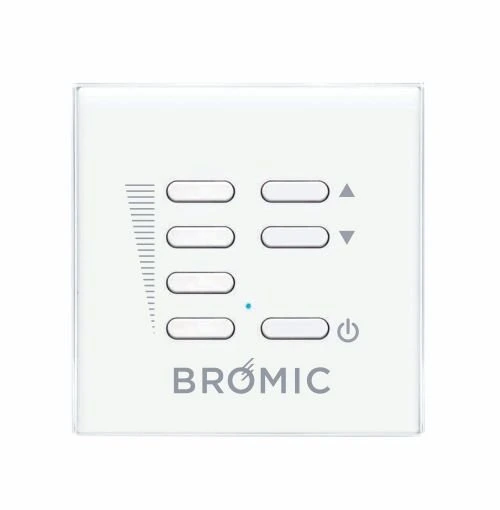

Bromic Affinity Smart-Heat Control Dimmer
Starts at: $649.00
NEW
Bromic’s best in class controls have arrived with our new Affinity Smart-Heat Collection. This new Dimmer Series streamlines installation and elevates custom comfort with incremental output management and more game-changing settings through our Bromic Heating App.
Enjoy custom comfort with the Affinity Dimmer Series. Suitable for Bromic Platinum and Tungsten Collection electric heaters, the Affinity Dimmer Series comes in 1 and 2 channel input options, with each channel controlling up to 6000W of power. Using the Bromic Heating app, instantly and precisely adjust heat output down to 1% increments and other unique scenes and settings for ideal outdoor experiences.
Additional 3-Phase 5 Channel model, coming soon (2025), is complete with an included expansion board allowing for seamless ethernet integration for a full-proof connection to your outdoor heaters or 0-10V control for Home or Business Automation integration
| MODEL | Smart-Heat Control Dimmer 1 CH | Smart-Heat Control Dimmer 2 CH | Smart-Heat Control Dimmer 5 CH |
| PART NUMBER | BH3130061 | BH3130062 | BH3130063 |
| NUMBER OF CHANNELS | 1 | 2 | 5 |
| VOLTAGE-MAX CAPACITY PER CHANNEL | 208-277V – 6kW | 208-277V – 6kW | 3N-220/380V – 6kW 3N-230/400V – 6kW 3N-240/415V – 6kW 3N-277/480V – 6kW 3- 120/208V – 6kW |
| OPERATING TEMPERATURE RANGE | -4°F to +86°F | -4°F to +86°F | -4°F to +86°F |
| NON-OPERATING TEMPERATURE RANGE | -22°F to +158°F | -22°F to +158°F | -22°F to +158°F |
| PROTECTION RATING | IP54 | IP54 | IP54 |
| DIMENSIONS | 11.4 x 8.0 x 4.4″ | 11.4 x 8.0 x 4.4″ | 19.7 x 13.4 x 8.0″ |
| WEIGHT | 3.5 lbs | 5.3 lbs | 27.6 lbs |
Dimensions
On/Off 1 & 2 Channel Dimensions
On/Off 5 Channel Dimensions
Mounting Options
Clearances
FAQs
What products can be used with the Affinity Dimmer control series?
The Affinity Dimer Controls can be used with all Bromic Heating Platinum, Tungsten and Cobalt Electric Heater models. Dimmer controls are not compatible with Gas Heaters.
How many heaters can I control with this controller?
Single Channel Controls are rated for 6kW maximum, Dual Channel controls are rated for 12 kW maximum. Both Single and Dual Channel options can control multiple heaters within their maximum capacity.
- Examples:
- A Single 6 kW Dimmer Control is compatible with 2 Platinum 2300W Electric Heaters.
- A Dual 12 kW Dimmer Control is compatible with 2 Tungsten 6000W Electric Heaters.
- A Single 6 kW Dimmer Control is compatible with up to 10 Gas Heaters.
Can I control elements or heaters individually with the Affinity Dimmer control series?
No, individual element control is unnecessary when using the Dimmer Controls, all elements or individual heaters will be controlled at the same level simultaneously.
Do these controllers have a timer function?
The Bromic App includes both timer/scheduling function.
Additional information
| Channel | 1CH BH3130061, 2CH BH3130062, 5CH (Coming 2025) BH3130063 |
|---|
